  • front panel in Graham imp and new factory front wing fitted along with rebuilt bonnet

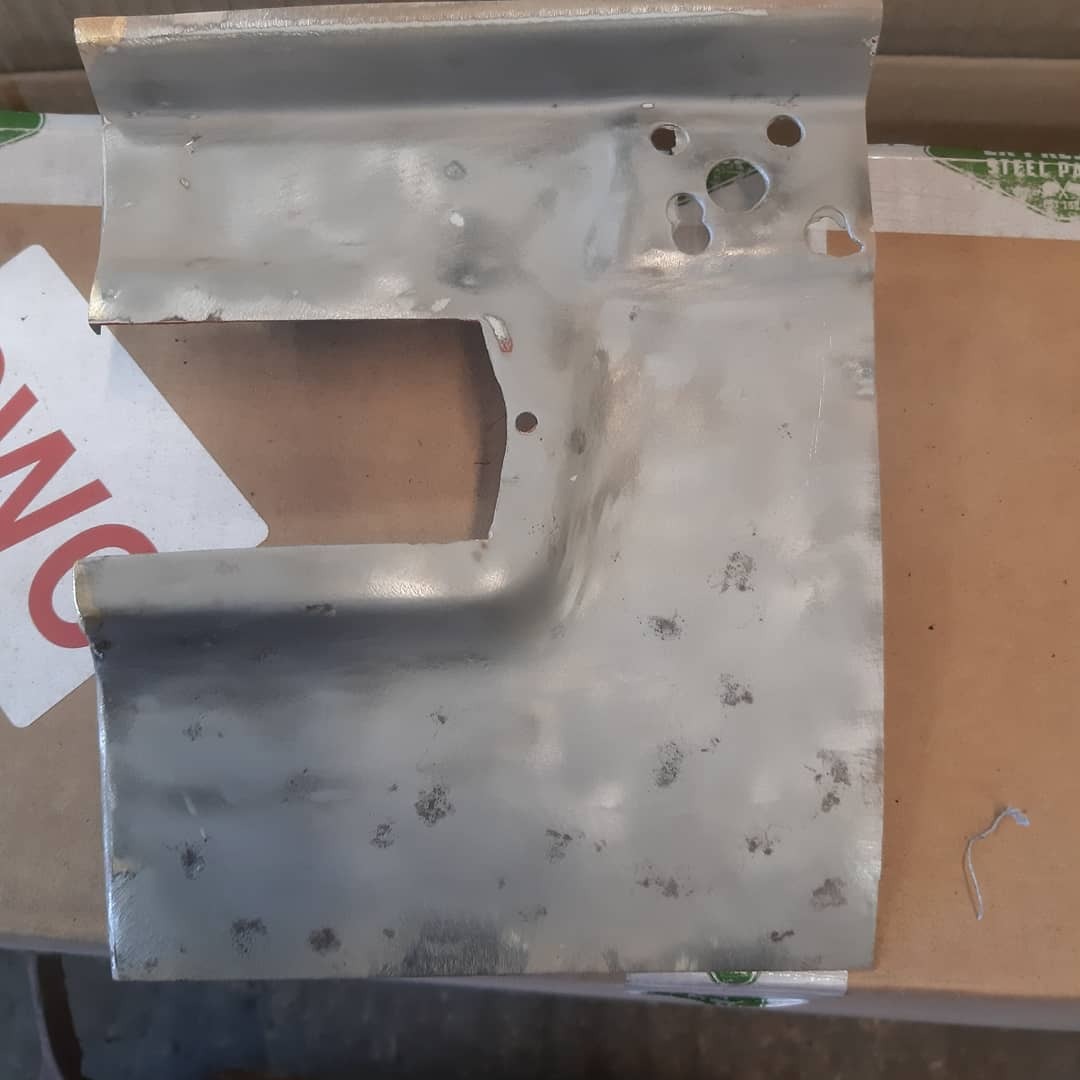

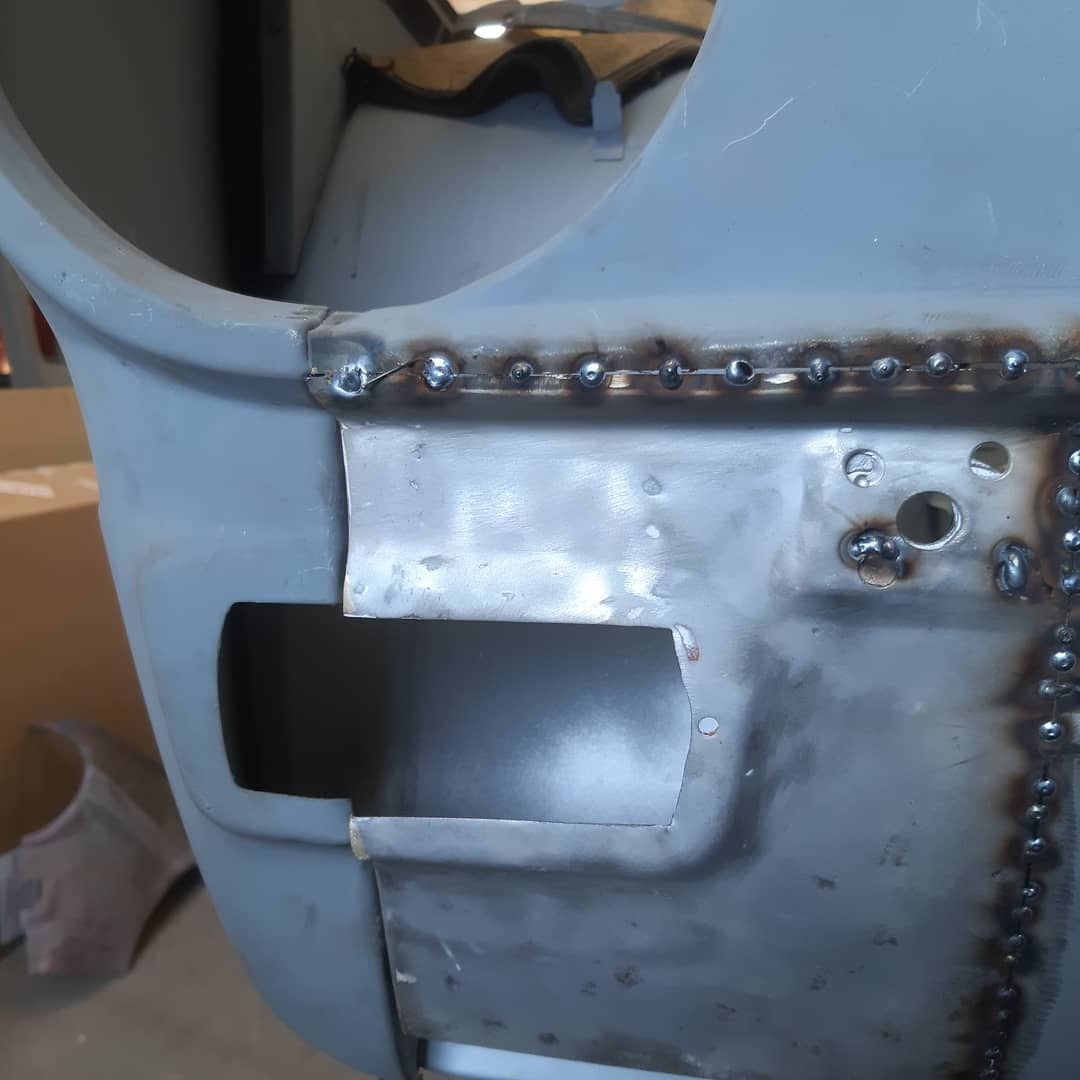

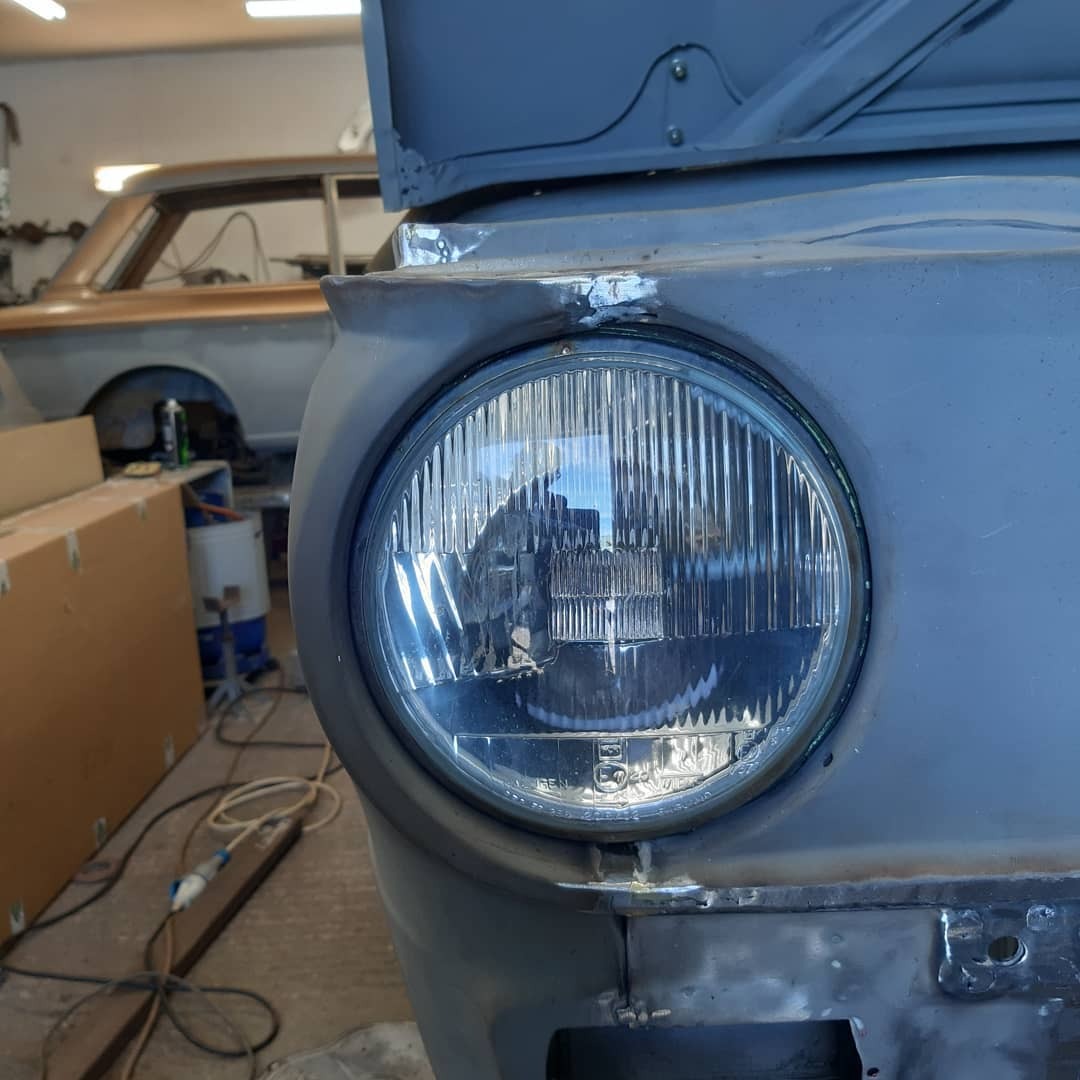

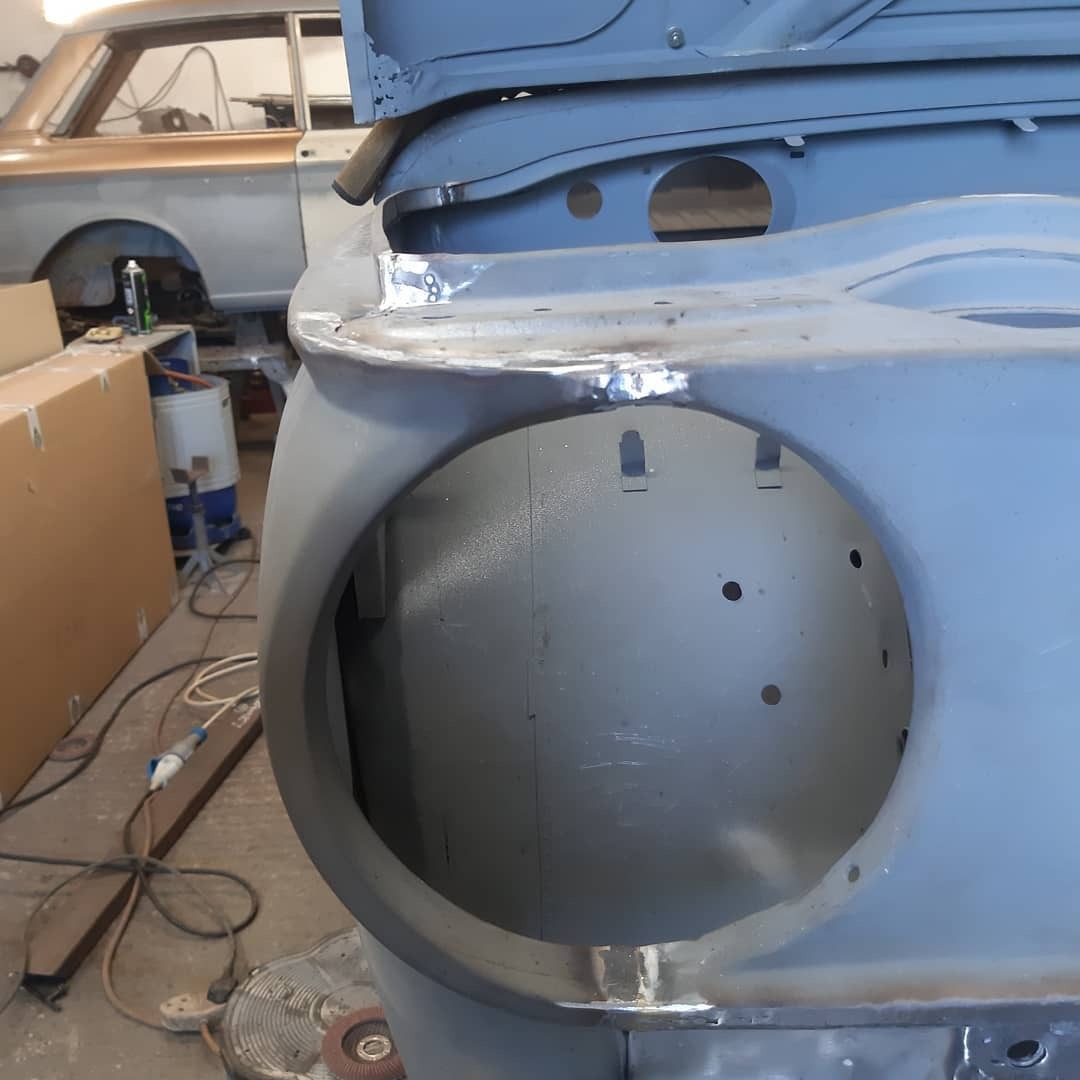

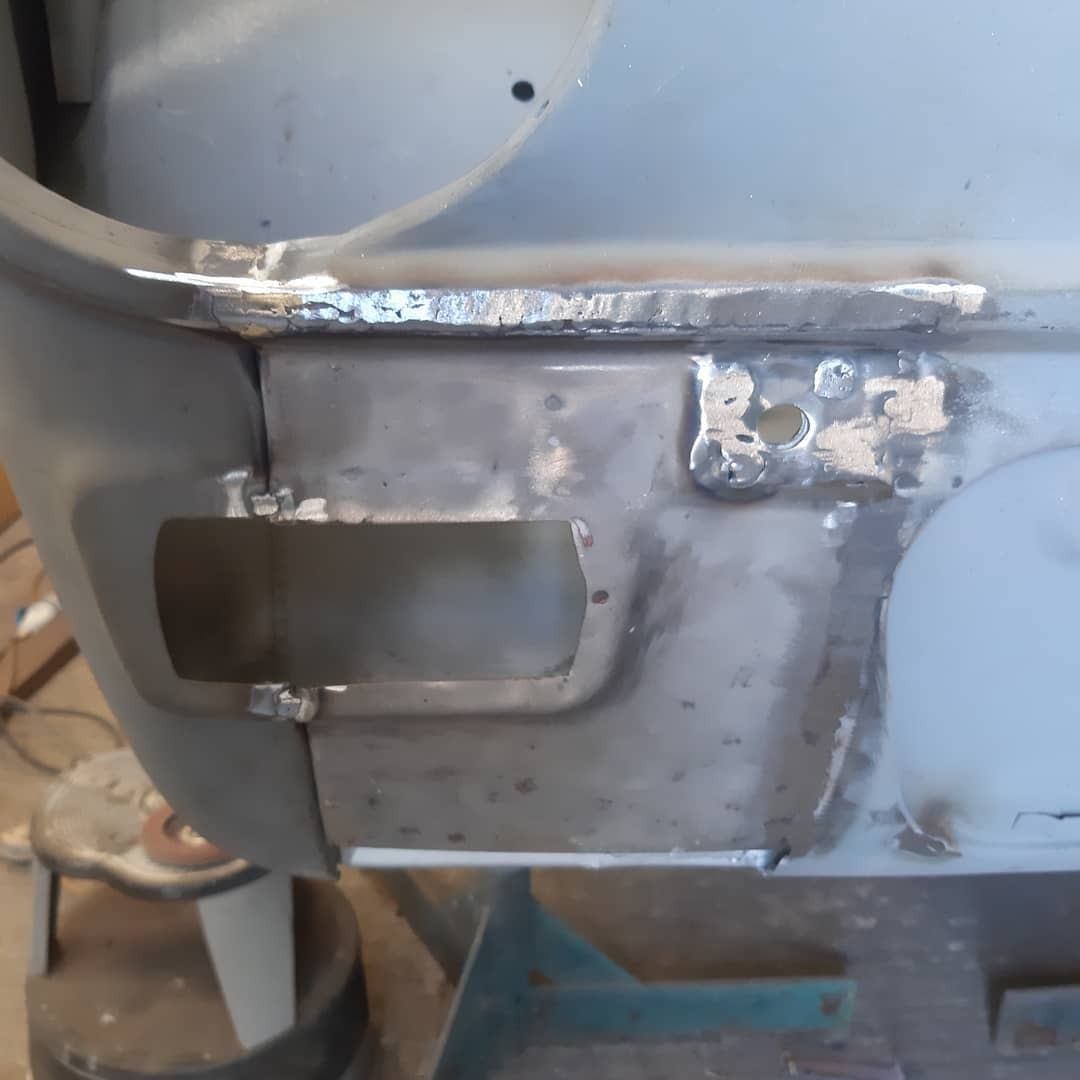

    A used section of front panel let in in Graham #imp and new factory front wing fitted along with a rebuilt bonnet which had a big dent in the nose .

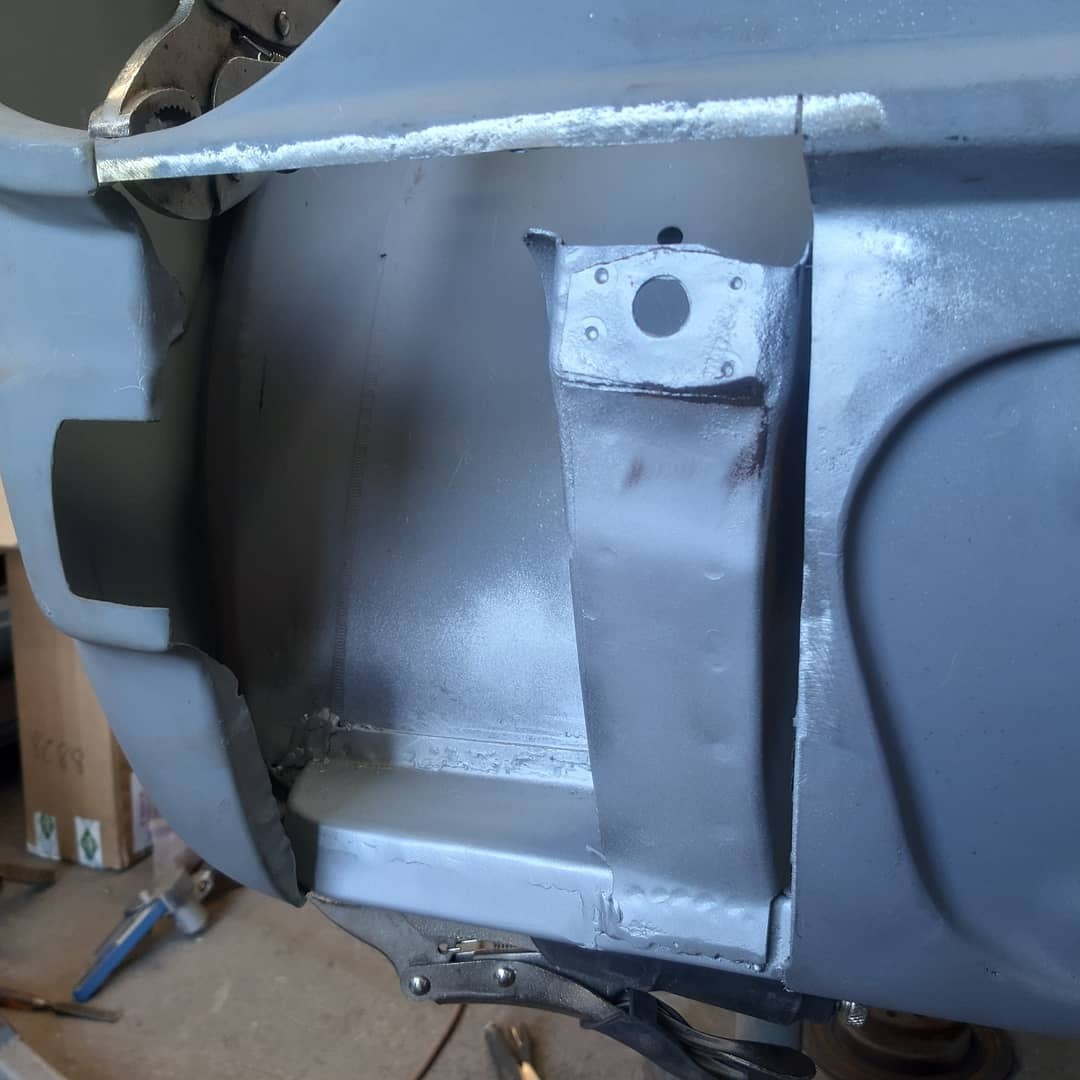

    I took it apart and knocked it out then had it blasted and rebuilt and glued the brace back in .

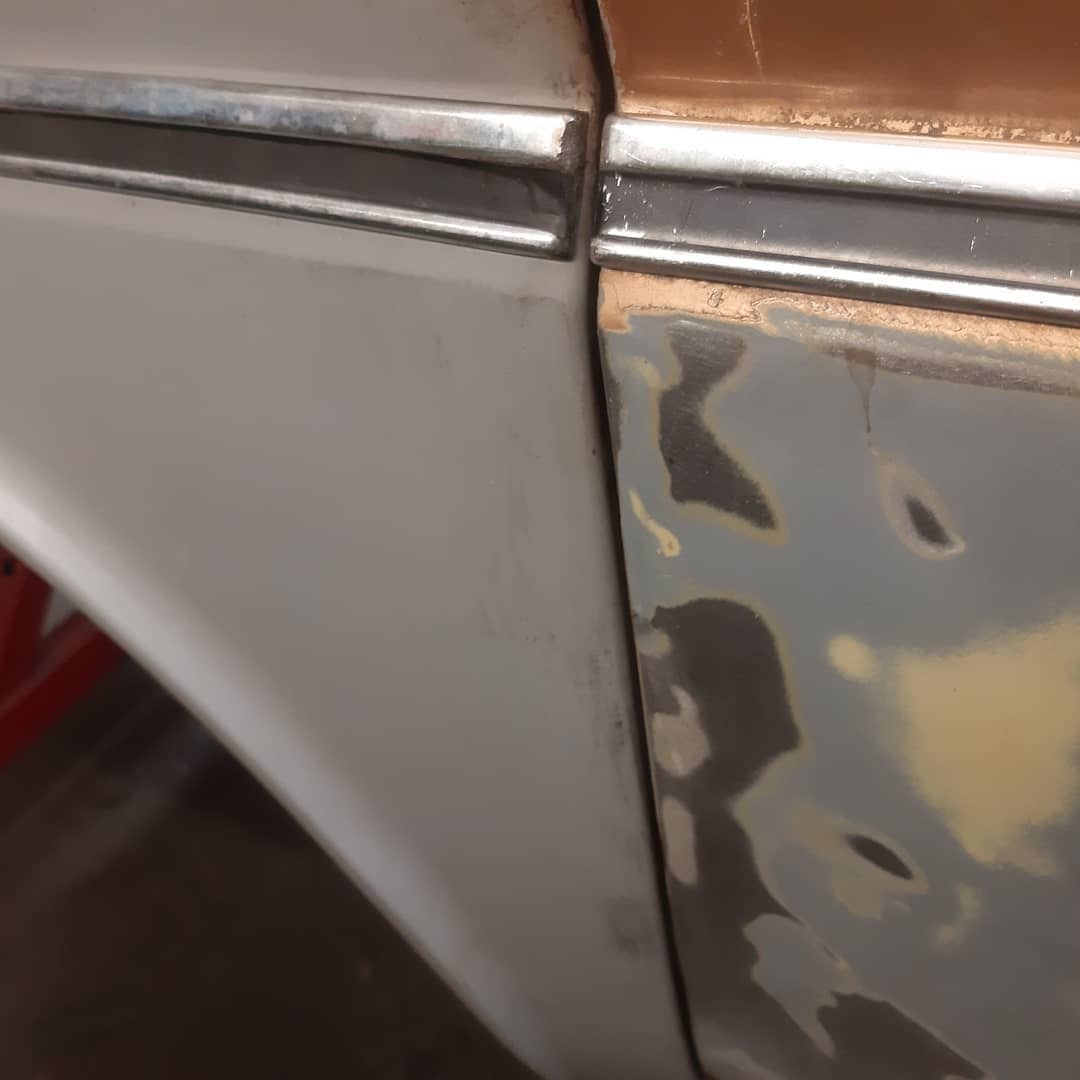

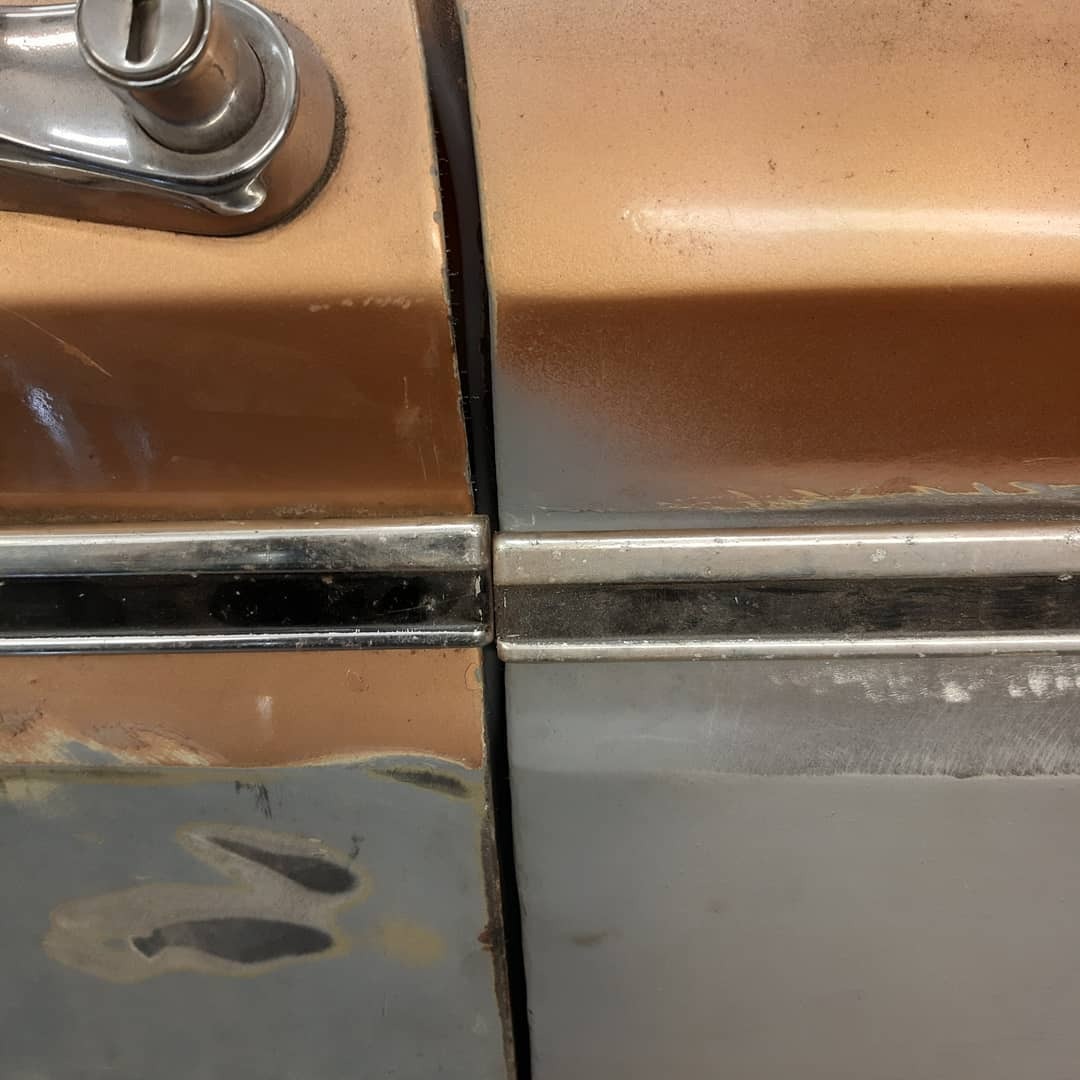

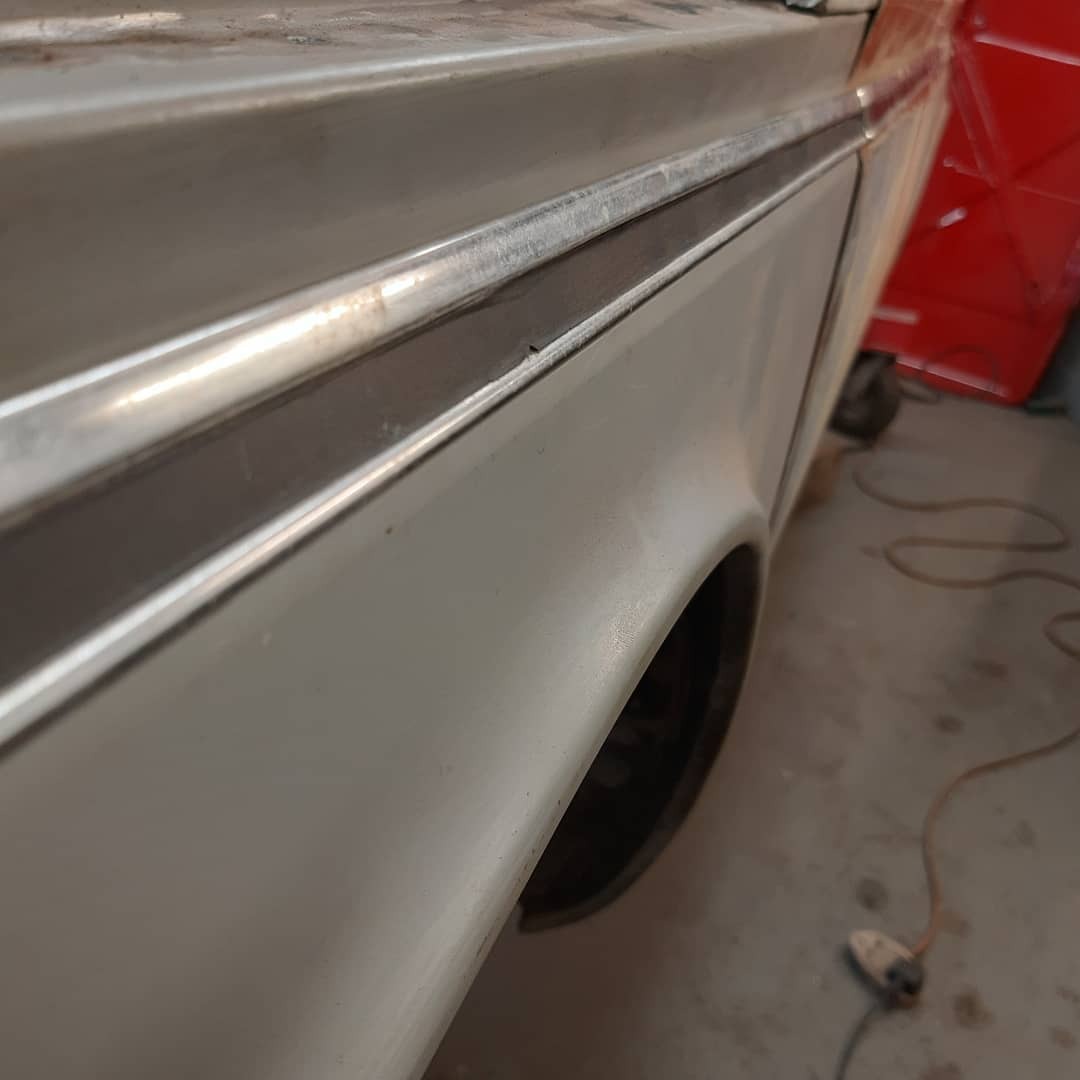

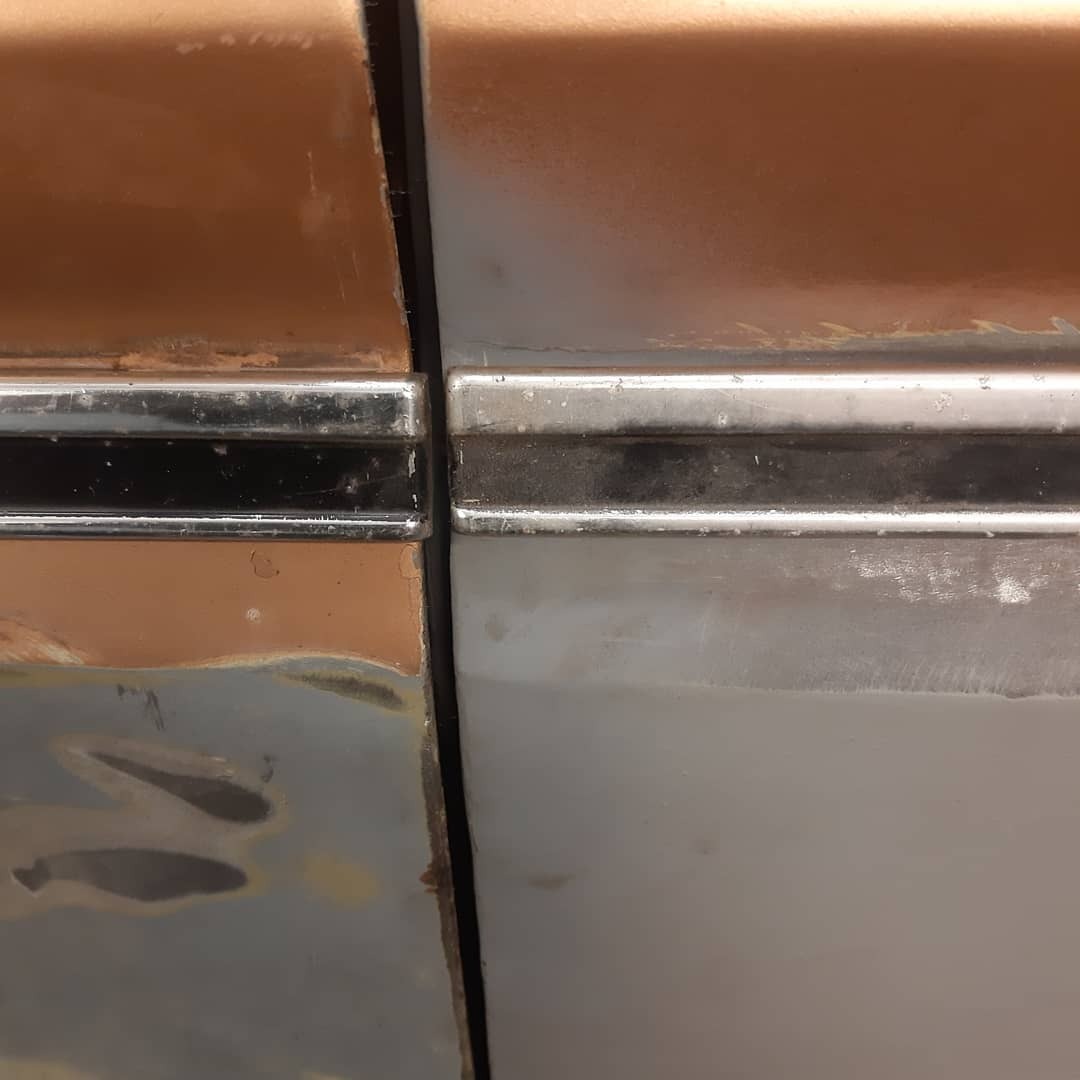

    Then there is a few pictures of Gordon's #imp 1st being the rootes trim line match. I had to re drill a few holes in the door to get the line so I could then mark out the new front wing and drill that to except the trim . Stay safe all and will update at the weekend

    FBF
